Microwave Repair

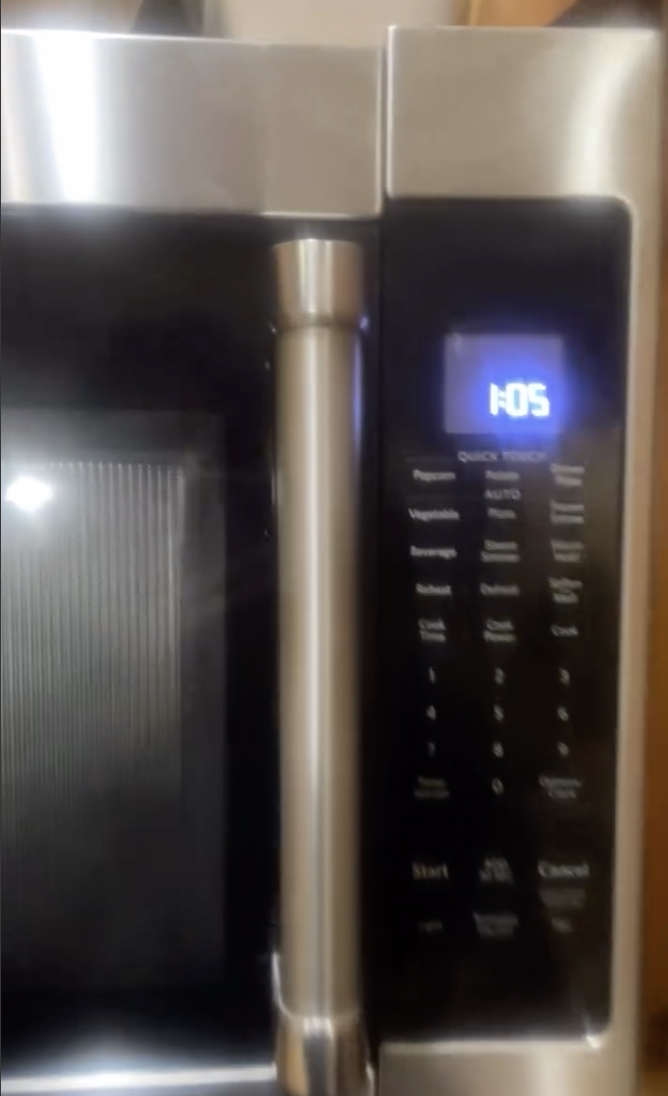

Microwave Model: kitchenaid KMHS120ESS

Problem statement: My uncle slams the microwave too hard and the switches that detect if the microwave is closed were pushed to far back pushing the coil spring out of position.

Solution: Open microwave electronic controls and put the springs in place.

Steps

https://www.instagram.com/p/DRM5GjUDpEv/

  1. Turn off microwave (forgot)
  2. Unbolt the top of microwave
  3. Push up the buttonpad out of slots

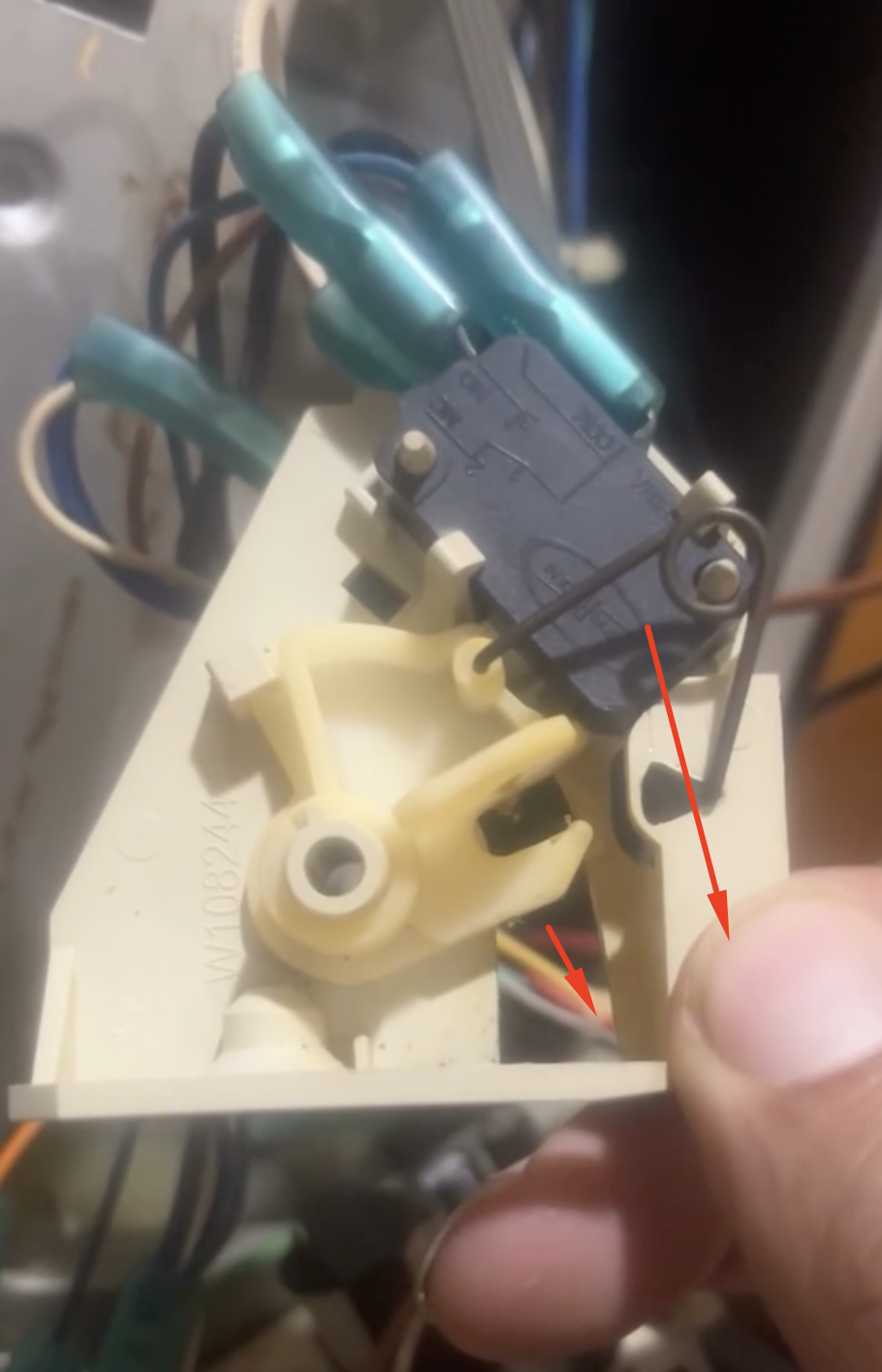

  4. Use a small screwdrive to help push the springs holding the switches to currect location

alt alt

Issue: I didn't turn off microwave so I shorted the fuse because the screwdriver touched tow leads and caused a short, which pulls too much current into the load because there is no/too low of resistance. The high current trips the breaker in the breaker box.

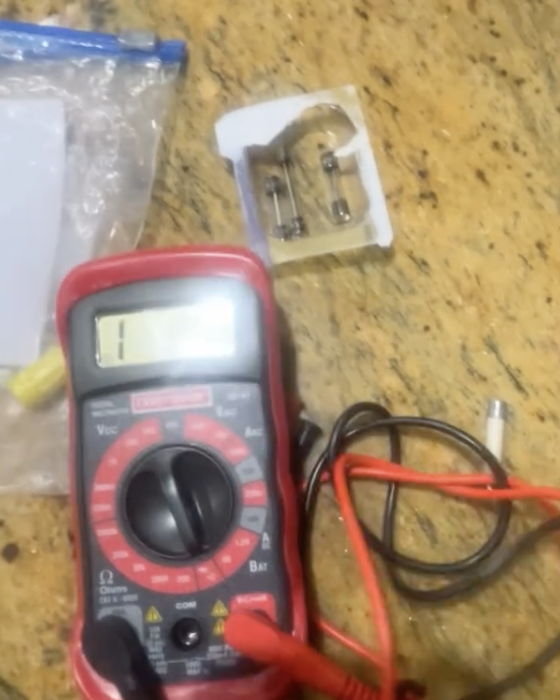

Buy replacement fuse. Cars contain standard fuses, so shops that have car maintainence supplies may carry the fuse. We bought at walmart 10 minutes before closing. Check rating of fuse (written on it). The one we had was rated at 220v, 20A. We used a 20A, 35v fuse and hope that it is the same because they design w/ change in amperage in mind :).

  1. Remove old fuse and check if shorted (blown out)
  2. To check, you can either see it grey/black like a fused light bulb or the wire inside is broken
  3. If you have a voltmeter, you can check continuity and see if none, then needs to be replaced
  4. Replace

Worked :)

alt
