STM32

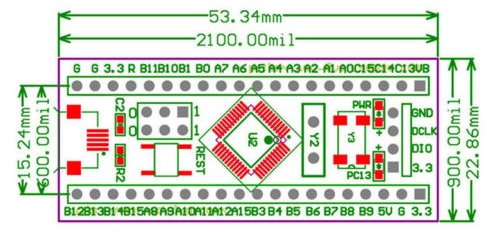

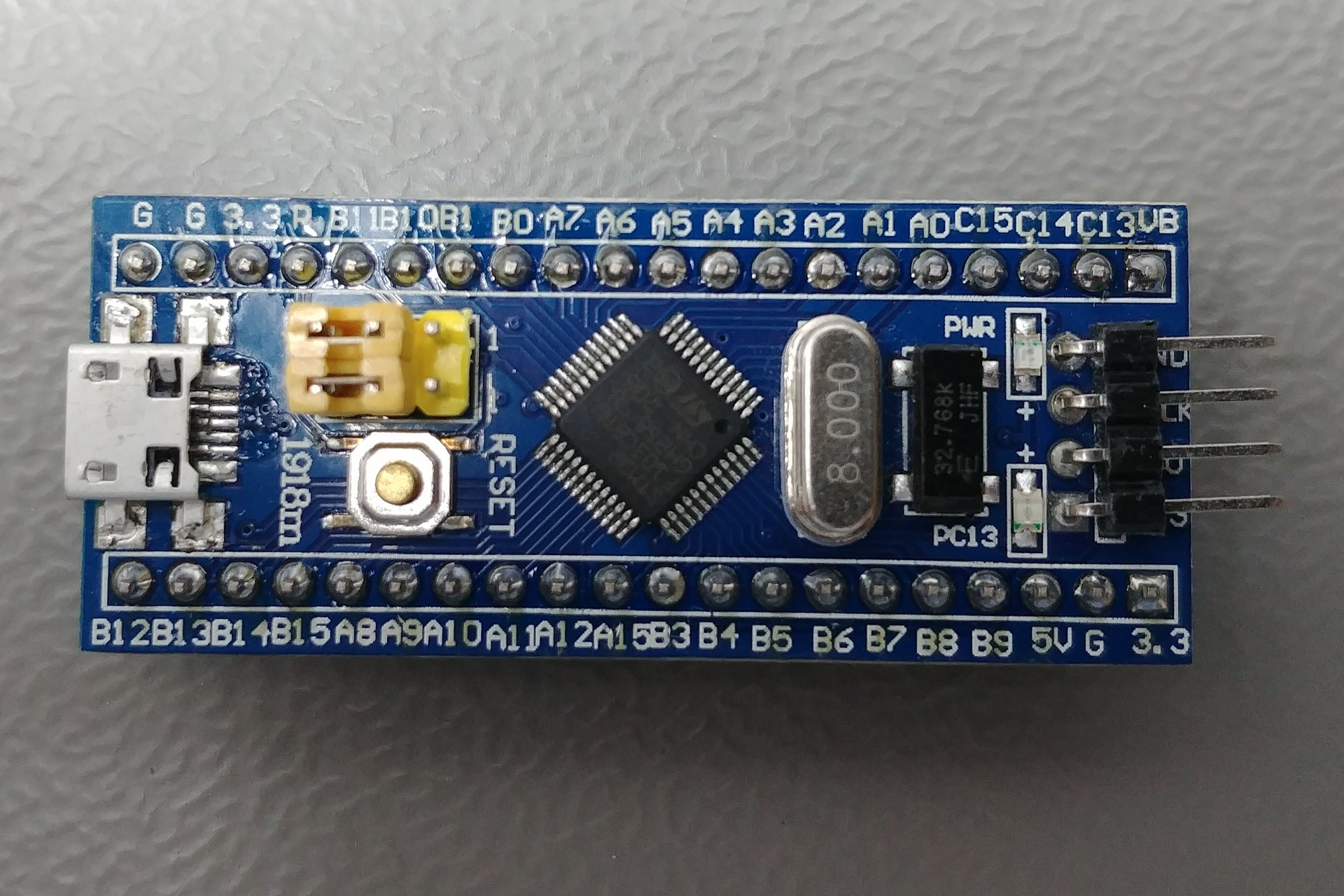

STM32 Blue Pill

• Microcontroller: STM32F103C8T6 (Mainstream, Performance)
• Core: Arm Cortex-M3
• Started developing in 2007
• Max. Clock Speed 72MHz
• FLASH: 64KiB
• SRAM: 20KiB

Power

• Any +3.3V pin (+3.3V)
• Any +5V pin (+5V)
• USB connector (+5V)
• Input: +3.6V to +5.5V
• Output: +3.3V @ 300mA

Description

Based on various 32-bit RISC ARM Cortex-M processing cores

Citations

• stm32 - wiki
• https://stm32-base.org/boards/STM32F103C8T6-Blue-Pill.html
• https://www.st.com/en/microcontrollers-microprocessors/stm32-32-bit-arm-cortex-mcus.html
• https://stm32-base.org/boards/STM32F103C8T6-Blue-Pill.html

Links

• https://www.txsemi.com/cn/index.html
• https://reversepcb.com/stm32f103c8t6/
• https://electronics.stackexchange.com/questions/638490/how-can-i-use-stm32-blue-pill-with-external-power-source-like-battery-which-p
• https://electronics.stackexchange.com/questions/348514/how-to-power-stm32f103c8t6-in-a-real-project
• https://www.st.com/en/microcontrollers-microprocessors/stm32-32-bit-arm-cortex-mcus.html
