Rivets

Hockey Off-Ice Pucks

Patent: https://patents.google.com/patent/US5792012A/en

  • three inches in diameter by one inch high (same as ice puck)
  • Improved performance by slightly increasing the diameter to 3.2 inches
    • and slightly reducing the height to 0.9 inches
  • tubular rivets require roughly ΒΌ the force of solid rivets.
  • Semi-tubular rivets are often the preferred rivet style for joints where movement is required (pivot points)
    • because the rivet material only swells at the tail.

Filed in 1997; Expired in 2017

alt text

alt text

alt text

  • https://greenbiscuit.com/

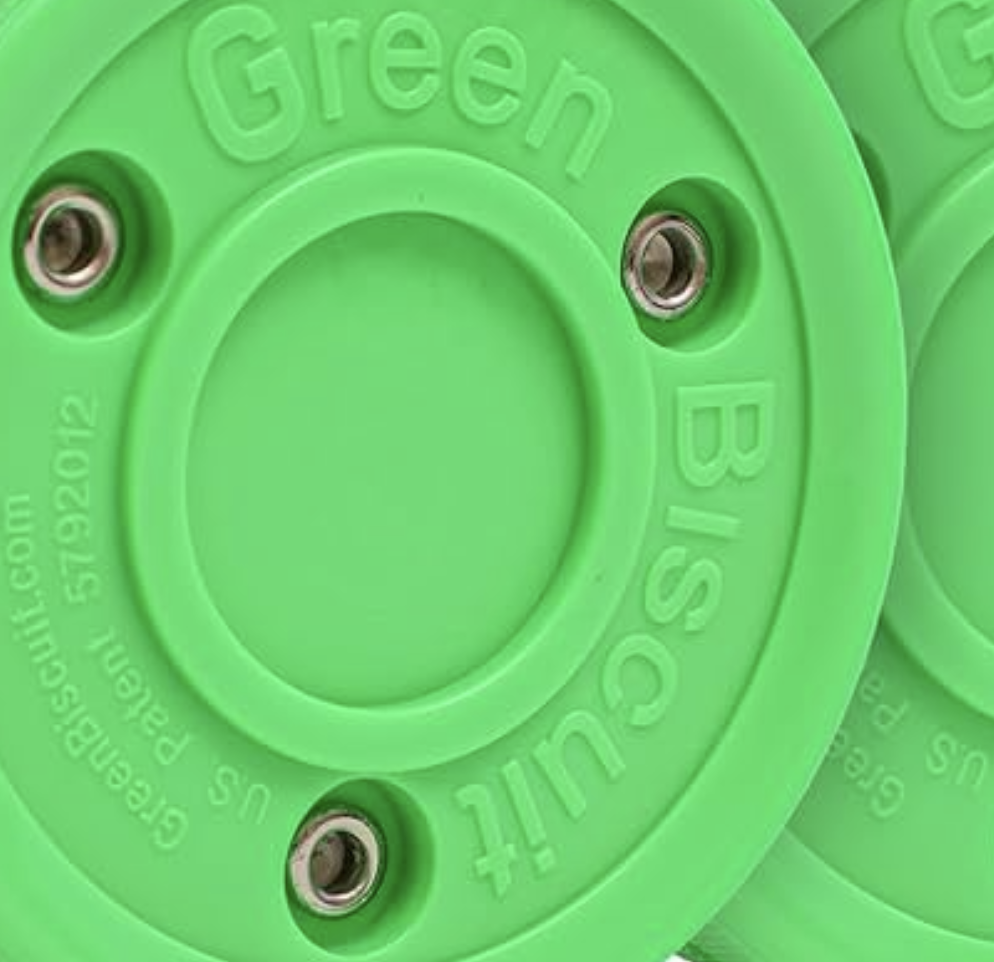

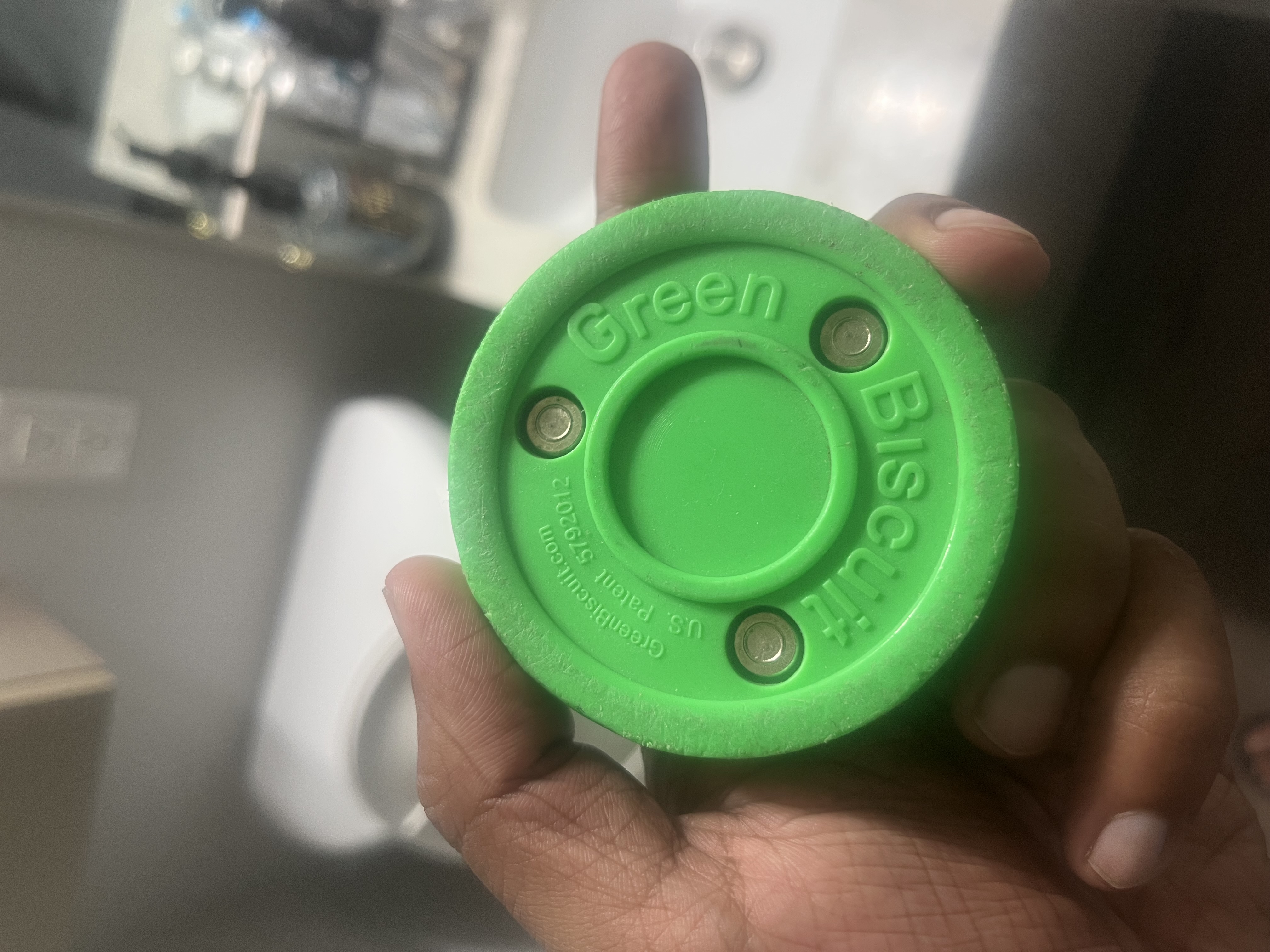

Held together by 3 rivets and foam spacer

  • Size: 5mm diamter, 12mm lenght
  • Foam Spacer: 2.5mm long, 14mm outer diameter

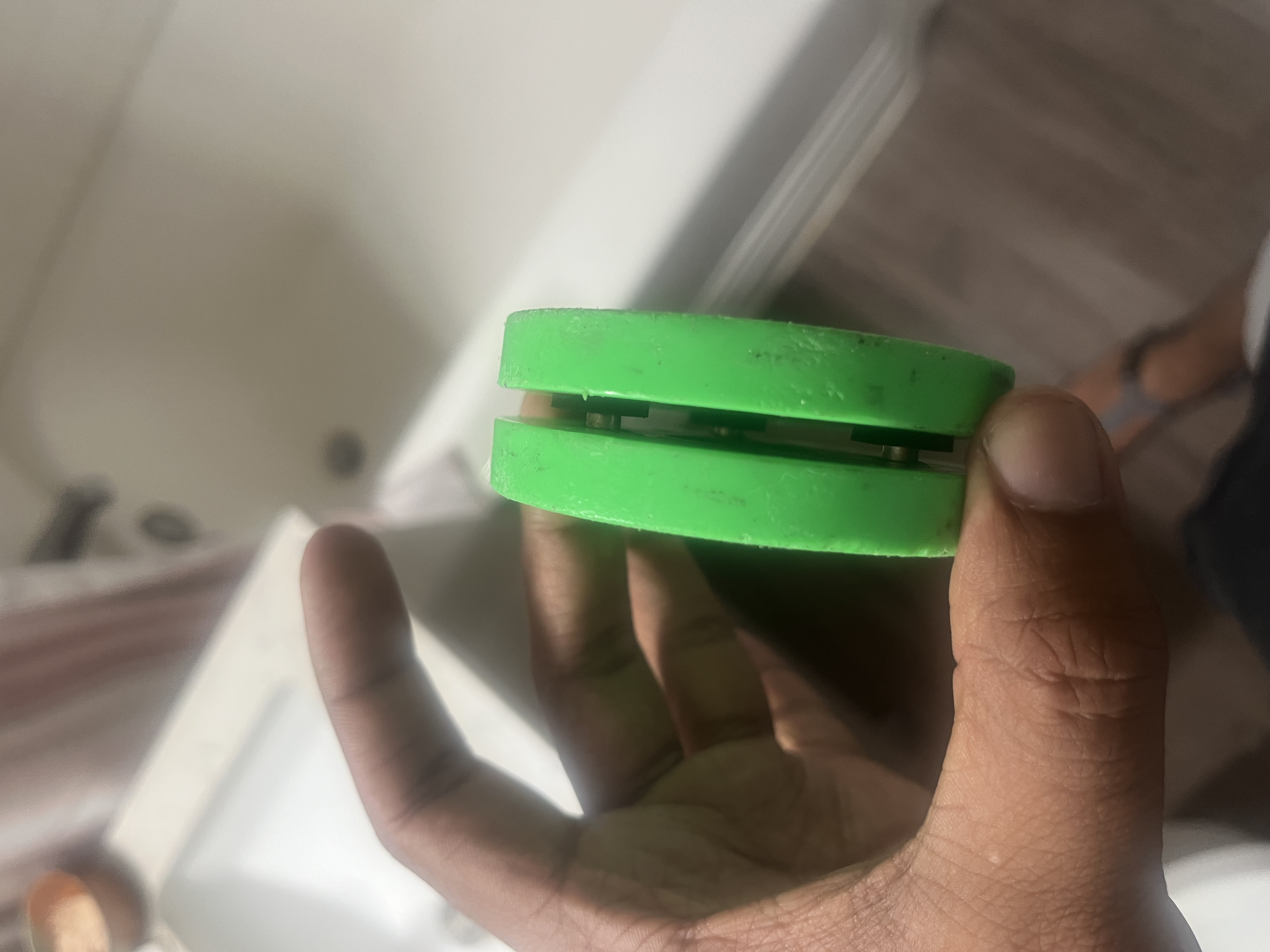

  • Inner Spacing between pucks: 5mm
  • Puck Diameter: 76mm
  • Rivets distance from outer edge: 14mm
  • Each puck thickness: 11mm
  • Puck thickness countersink for rivets: 5.5mm

https://greenbiscuit.com/product/original-biscuit/

Original Green cost: $14

  • 4.6 oz

Purchase

Rivets

Arrow 3/16 in. D X 1/2 in. Aluminum Long Rivets Silver 50 pk

  • $10.49
  • https://www.acehardware.com/departments/tools/fastening-tools/rivets/2496925

(200Pcs) 3/16"x5/8" stainless steel blind pro Rivets,Steel handle and stainless steel mandrel

  • 15% $16.99
  • https://www.amazon.com/Wensilon-200Pcs-Aluminum-4-8X16mm-Mandrel/dp/B0C2KF5KL4

https://www.harborfreight.com/90-piece-pom-rivet-assortment-67611.html

Rivet Guns

  • https://www.harborfreight.com/45-piece-threaded-insert-riveter-kit-1210.html
    • $20
  • https://www.harborfreight.com/11-in-swivel-head-hand-riveter-63396.html
    • $10
  • https://www.harborfreight.com/hand-riveter-with-40-industrial-strength-poly-rivets-97757.html
    • $17, weird design

Videos

Citations

  • https://www.rivetsonline.com/rivets/semi-tubular-rivets

Thoughts

  • Can I just use rivets with threads and put a bolt through?
  • https://www.youtube.com/shorts/RAVH4-h1cPA
  • So then we can re-use half when half breaks
