Router

Device that forwards data packets between computer networks.

Routers can be built from standard computer parts but are mostly specialized purpose-built computers.

• Early routers used software-based forwarding, running on a CPU.
• More sophisticated devices use application-specific integrated circuits (ASICs) to increase performance or add advanced filtering and firewall functionality.

Current Router

Netgear R6220 Router

Device Specs:

• CPU: MediaTek MT7621ST, 880 MHz
• RAM: 128 MB
• Flash: 128 MB NAND
• Wi-Fi: Dual-band (2.4 GHz b/g/n via MT7603EN, 5 GHz a/n/ac via MT7612EN)

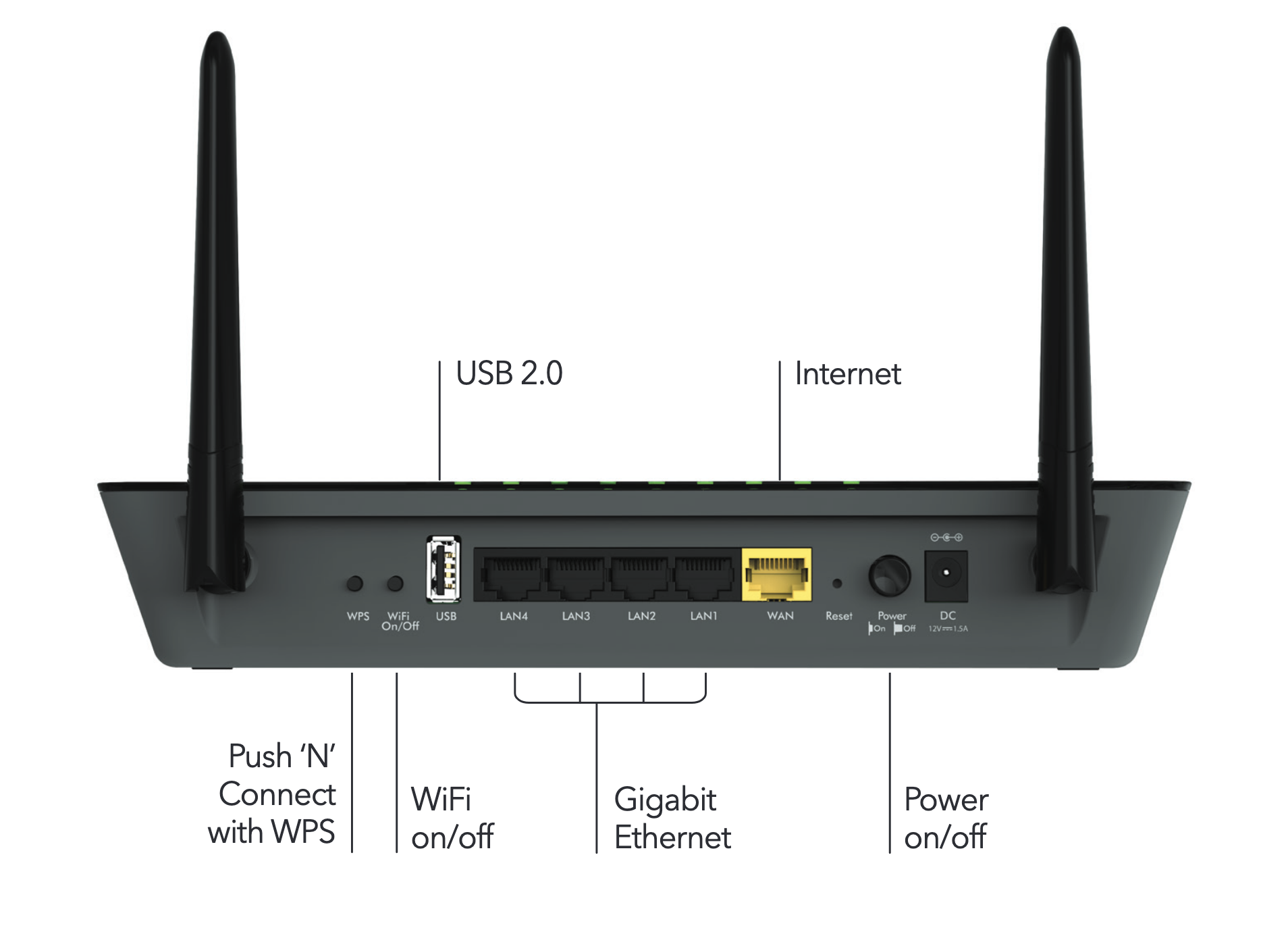

• Ethernet: 4× LAN + 1× WAN (all Gigabit)
• USB: 1× USB 2.0
• Antennas: 2 external (non-removable)

More Specs:

• $90
• https://www.amazon.com/NETGEAR-AC1200-External-Antennas-R6220/dp/B00QGOQ2BA
• https://www.netgear.com/support/product/r6220/
• AC1200 - 300+900Mbps† speeds
• For up to 20 devices and 1200 square foot coverage
• 880MHz processor
• USB 2.0 port—Wirelessly access & share USB hard drive
• IEEE® 802.11 b/g/n 2.4GHz
• IEEE® 802.11 a/n/ac 5GHz
• Memory: 128 MB flash and 128 MB RAM
• WiFi transmitters/receivers (Tx/Rx) - 2x2 (2.4GHz) + 2x2 (5GHz)

Security

• Standards-based WiFi Security (802.11i, 128-bit AES encryption with PSK)
• Double firewall protection (SPI and NAT firewall)
• Denial-of-service (DoS) attack prevention
• Free custom URL using NETGEAR Dynamic DNS service

OS - OpenWRT

• Supported since: OpenWrt 18.06.0
• https://firmware-selector.openwrt.org/?version=24.10.1&target=ramips%2Fmt7621&id=netgear_r6220
